Package Orientation Label

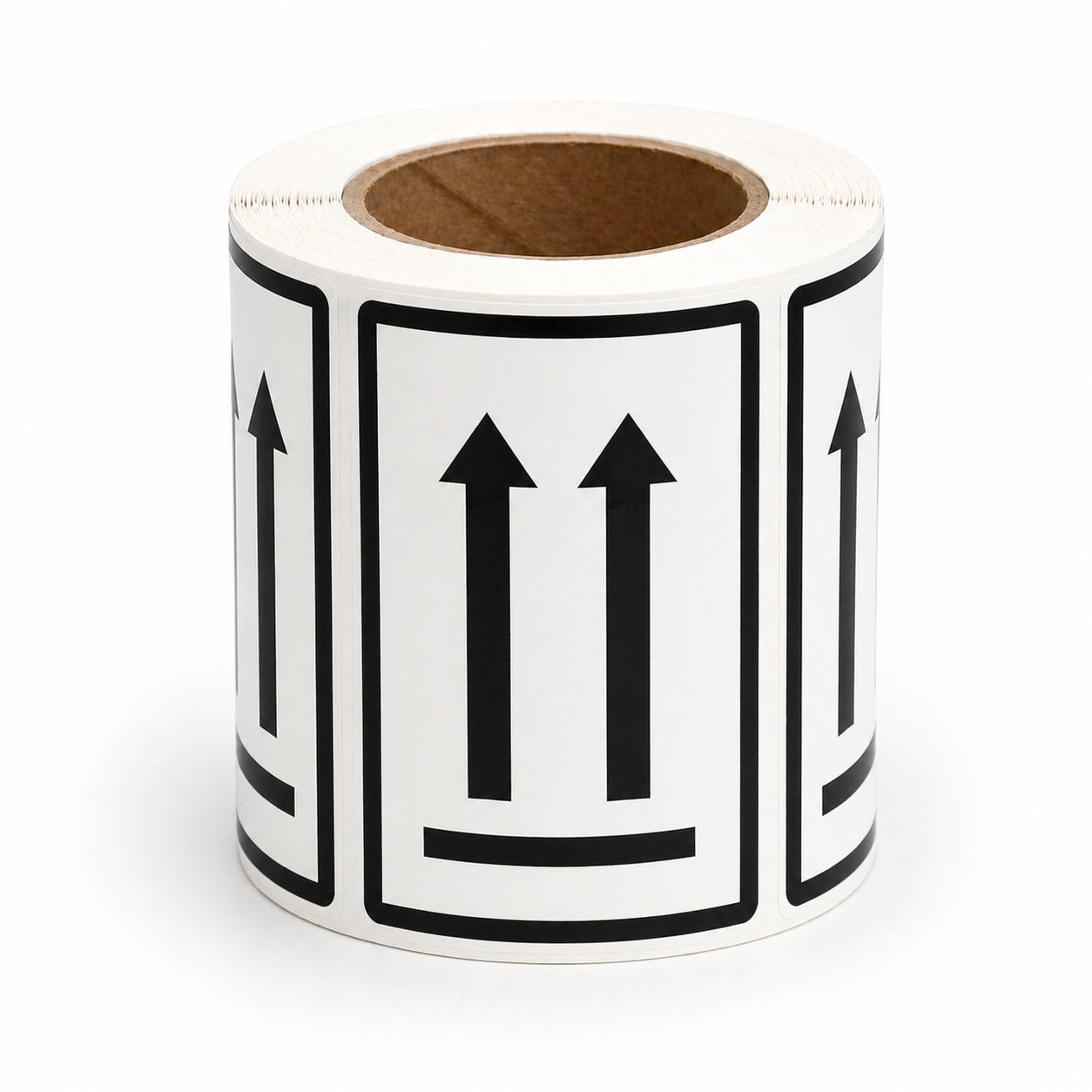

Package Orientation Handling Label – self adhesive, 500 labels per roll. Dimensions (in mm): 74 x 105

Compliant with Air, Sea and Road dangerous goods labeling requirements.

To be used on combination packagings and overpacks containing liquid dangerous goods. Orientation arrows are not required on outer packagings of combination packagings containing:

• dangerous goods in inner packagings each containing 120 mL or less with sufficient absorbent material between the inner and outer packagings to completely absorb the liquid contents;
• dangerous goods in gas tight inner packagings such as tubes, bags or vials which are opened by breaking or puncturing. Each inner packaging must not contain more than 500 mL;
• infectious substances in primary receptacles not exceeding 50 mL; or
• radioactive material.

Note: the actual label may differ from the image provided; provided labels are compliant with IATA, IMDG, ADG, AEC and RPSC-2  Codes. Contact us if you have questions about the labels.
